Harvia 20 Pro

For vigorous bathing.

Harvia 20 Pro gives a good hot bath in medium-sized saunas. It has a big stone space and an air-flow spoiler made of stainless steel. Through the cast-iron glass door the warm glow of the fire adds to the sauna atmosphere. The sturdy 10 mm fire space cover ensure durability. This model also features adjustable legs to facilitate installation and, for example, help in adjusting the height of the smoke outlet, and it can be equipped with a pipe mounted water heater. The outer casing of the stove is painted graphite black.

The recommended size of the sauna room is 8–20 m3 and the maximum amount of stones is 40 kg.

Technical information

Model	WK200
Sauna room min. m3	8
Sauna room max. m3	20
Stone capacity max. kg	40
Dimensions width mm	430
Dimensions height mm	760
Dimensions depth mm	510
Weight kg	60
Heater output kW	18
Safety distance to sides and back mm	500
Safety distance to front mm	500
Safety distance from upper surface to ceiling min. mm	1200
Fire chamber cover mm	10
Location of smoke outlets at rear: from floor to centre of hole mm	560
Location of smoke outlets on top: from rear edge to centre of hole mm	120
Diameter of smoke outlet mm	115

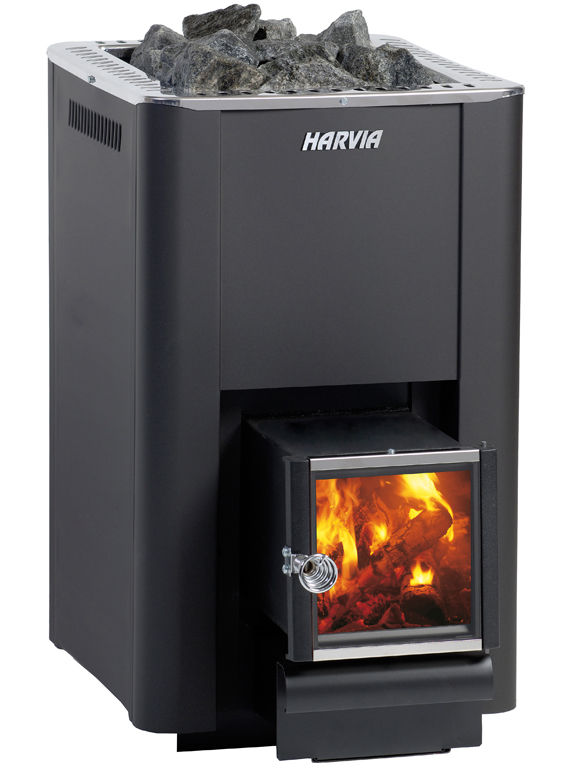

Harvia 20 SL

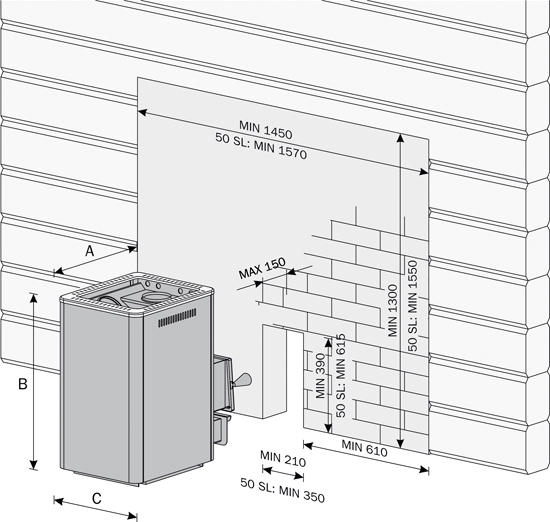

SL and Boiler stoves – Ease of use reaches a new level.

The SL models are designed for people who want to conveniently heat their sauna from another room or outside the building. The opening direction of the door can be changed, making these stoves even easier to use. SL and Boiler stoves provide great bathing in small and medium-sized saunas. Boiler stoves can be connected to a separate water tank.

All Harvia stoves for through-the-wall heating and Boiler models are equipped with a glass door to give that special feeling. The adjustable legs in 20-series make it easy to install the stove in a straight position despite floor inclination.

Technical information

Model	WK200SL
Output kW	18
Sauna room min. m3	8
Sauna room max. m3	20
Sauna room height min. cm	190
Stone capacity max. kg	40
Dimensions width mm	430
Dimensions height mm	760
Dimensions depth mm	510+220
Weight kg	70
Safety distance to sides and back mm	500
Safety distance to front mm	500
Safety distance from upper surface to ceiling min. mm	1200
Fire chamber cover mm	10
Location of smoke outlets on top: from rear edge to centre of hole mm	120
Diameter of smoke outlet mm	115

Harvia Legend 150

Great amount of stones – wonderful sauna bath.

The Harvia Legend woodburning stoves give you the ultimate sauna experience. The black steel frame has a mighty amount of stones inside, and as they heat up, you get a magnificent sauna bath even at a lower temperature. The large number of stones ensures good heat, even if the fire dies down in between.

The Legend stoves have a modern grate structure that enables the wood to burn more efficiently and cleanly. The smaller than usual safety distances from the side and back surfaces to burning materials enable you to locate the benches more freely. The Legend stoves can be equipped with a pipe-mounted water heater.

The Harvia Legend 150 offers a comfortably moist sauna bath for a smaller sauna. The stove is a treat for the eye and for the sauna bather. The Harvia Legend 150 is equipped with a cast-iron glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The adjustable legs make the stove easy to place in the sauna.

The size of the sauna room is 5–13 m3 and the maximum amount of stones is 120 kg.

Technical information

Model	Legend 150
Sauna room min. m3	5
Sauna room max. m3	13
Stone capacity max. kg	120
Dimensions diameter mm	530
Dimensions height mm	740
+ adjustable legs	0-30
Weight kg	58
Output kW	13
Safety distance to mansonry walls B min. mm	50(*
Safety distance to wooden walls and platform:	500
to sides	210
to back	250
to front	1000
Safety distance from upper surface to ceiling A min. mm	1000
Fire chamber cover mm	5
Location of smoke outlets at rear: from rear edge to centre of hole mm	180±5
Diameter of smoke outlet mm	115
Maximum length of firewood cm	35
(* Leave 50 mm between the stove and walls, provided that the air can circulate in front and to one side of the stove. If the stove is installed in a recessed wall, leave 210 mm between the stove and side walls and 250 mm behind the stove.

Harvia Legend 240

Great amount of stones – wonderful sauna bath.

The Harvia Legend 240 is an excellent choice for a medium sized sauna. It is equipped with a cast-iron glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The adjustable legs make the stove easy to place in the sauna.

The size of the sauna room is 10–24 m3 and the maximum amount of stones is 200 kg.

Technical information

Model	Legend 240
Sauna room min. m3	10
Sauna room max. m3	24
Stone capacity max. kg	200
Dimensions diameter mm	600
Dimensions height mm	830
+ adjustable legs	0-30
Weight kg	75
Output kW	18
Safety distance to mansonry walls B min. mm	50(*
Safety distance to wooden walls and platform:
to sides	210
to back	250
to front	1000
Safety distance from upper surface to ceiling A min. mm	1000
Fire chamber cover mm	10
Location of smoke outlets at rear: from floor to centre of hole mm	560
Location of smoke outlets at rear: from rear edge to centre of hole mm	200±5
Diameter of smoke outlet mm	115
Maximum length of firewood cm	39
(* Leave 50 mm between the stove and walls, provided that the air can circulate in front and to one side of the stove. If the stove is installed in a recessed wall, leave 210 mm between the stove and side walls and 250 mm behind the stove

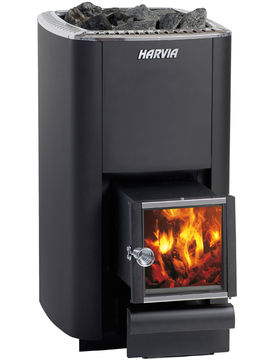

Harvia M3 SL

SL and Boiler stoves – Ease of use reaches a new level.

Technical information

Model	WKM3SL
Output kW	13
Sauna room min. m3	4.5
Sauna room max. m3	13
Sauna room height min. cm	190
Stone capacity max. kg	30
Dimensions width mm	390
Dimensions height mm	710
Dimensions depth mm	430 + 220
Weight kg	50
Safety distance to sides and back mm	500
Safety distance to front mm	500
Safety distance from upper surface to ceiling min. mm	1200
Fire chamber cover mm	5
Location of smoke outlets on top: from rear edge to centre of hole mm	120
Diameter of smoke outlet mm	115

Harvia M3

A stylish stove for smaller saunas.

The Harvia M3 has a classic design and is suitable for smaller, woodburning saunas. It turns a sauna bath into a pleasurable experience and adds a touch of traditional sauna atmosphere. The even heat and efficient air circulation guarantee an enjoyable bath.

The Harvia M3 comes equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The colour of the stove is elegant graphite black and it has a stainless steel air-flow spoiler. The M3 stove can be equipped with a pipe model water heater.

The recommended size of the sauna room is 4.5–13 m³ and the maximum amount of stones is 30 kg

Technical information

Model	WKM3
Output kW	13
Sauna room min. m3	4.5
Sauna room max. m3	13
Stone capacity max. kg	30
Dimensions width mm	390
Dimensions height mm	710
Dimensions depth mm	430
Weight kg	45
Safety distance to sides and back mm	500
Safety distance to front mm	500
Safety distance from upper surface to ceiling min. mm	1200
Fire chamber cover mm	5
Location of smoke outlets at rear: from floor to centre of hole mm	560
Location of smoke outlets on top: from rear edge to centre of hole mm	120
Diameter of smoke outlet mm	115

TopclassLegend protective sheath and bedding

Legend protective sheath makes the safety distances of the stove considerably shorter. The number of protective sheath elements mounted can range from 1 to 3 as required. The protective sheaths allow the safety distance to be reduced to half on all protected sides. The product can be used with all woodburning Legend stoves. The sheath is made of black painted metal sheet.

Legend protective bedding is made of aluminium-zinc-coated steel sheet which is painted black. The protective bedding is used, for example, when the stove is installed on a tile floor with a water barrier treatment.

Technical information

Model	WIFI
ITEM NUMBER	CX001WIFI
EAN	6417659027830
COLOR	Black
