Harvia Cilindro PC XE (Black Steel) + Xenio Control Unit

$2,280.30 – $2,335.30 inc GST

Arriving soon!

Fast shipping Australia wide

Experience the pinnacle of sauna luxury and personalization with the Harvia Cilindro XE Black Steel electric heater, featuring a sophisticated Xenio digital control unit for precise temperature and steam adjustments.

Type:: Electric
Dimension:: 320 x 320 x 930 mm
Install location:: Floor
Material:: Black steel
Control:: External control (included)
Power supply:: High voltage 400V/230V 1/3N~
Rock capacity:: 90 kg (sold separately)
Rock size:: 5 to 10 cm diameter

Model

Power output

Room volume

Clear

Any questions? Enquire now

Note: Sauna rocks are sold separately and not included. Using non-Harvia sauna rocks might introduce contaminants to the heater, potentially causing damage that the Harvia warranty won’t cover. While we have a variety of sauna rocks available for purchase, Harvia Olivine Diabase, and Harvia Black Vulcanite are highly recommended for these heaters.

Description

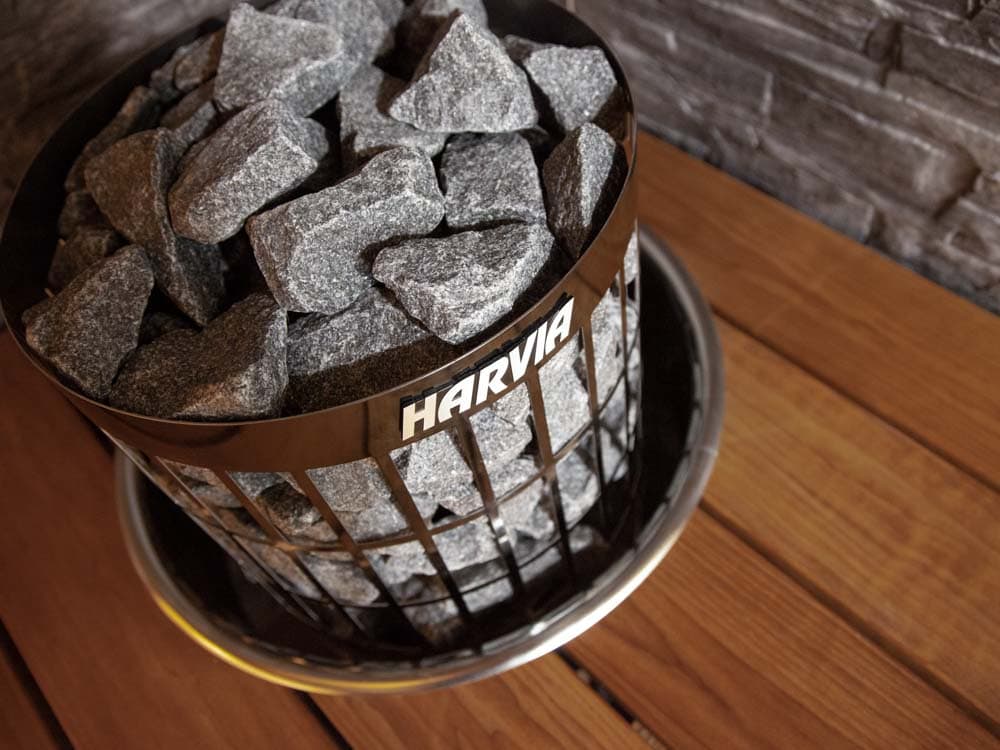

The Harvia Cilindro pillar heaters, with their sleek design, are adaptable electric heaters suitable for a variety of sauna environments, from intimate family settings to larger public facilities. These heaters are engineered to balance size and stone volume, ensuring a smooth yet intense sauna experience for any space.

Key Features:

Adaptable for All Sauna Sizes: Efficiently serves both small private saunas and larger communal ones.
Large Stone Volume: Delivers a consistent and robust sauna bath, enhancing the overall experience.

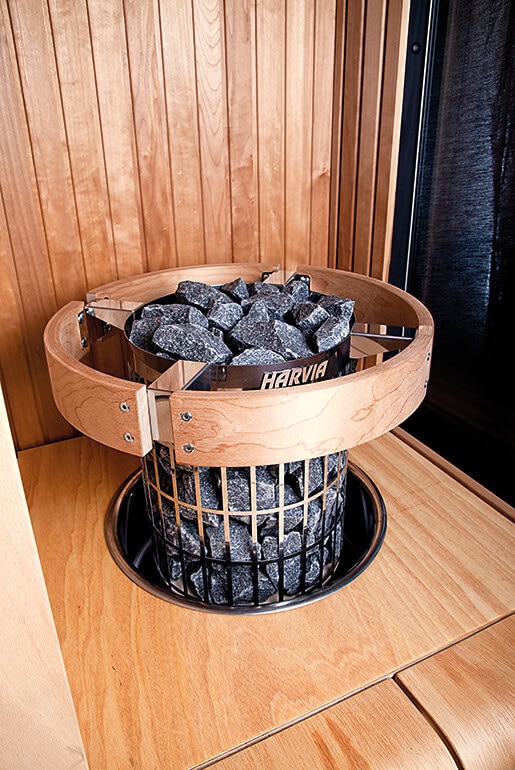

Pillar Design: Provides flexibility in sauna layout, ideal for embedding into benches or as a standalone feature near glass walls for visual appeal.
Elegant Stainless Steel Finish: The glossy exterior adds a modern touch to any sauna’s decor.

Downloadable Files
Harvia Cilindro PC XE Black Steel -User Manual
Harvia Cilindro PC70 XE Black Steel – Datasheet
Harvia Cilindro PC90 XE Black Steel – Datasheet
Harvia Cilindro PC XE Black Steel- Brochure

Certificate
Harvia Products – EU Declaration of Conformity

Additional Technical data
Warranty Professional	12 months
Warranty Community	12 months
Warranty Consumer	24 months
Installation Orientation	Vertically
Temperature adjustment range	40 °C – 110 °C
Stone sizes	5 to 10 cm diameter
Stone amount (kg)	90 kg
Net Weight	PC70XE: 9.3 kg PC90XE: 9.5 kg
IP Class	IPX4
Electrical Frequency	50/60 Hz
Fuses (400V3N~) pcs x ampers	PC70XE: 3 x 10 A PC90XE: 3 x 16 A
Fuses (230V1N~) ampers	PC70XE: 1 x 35 A PC90XE: 1 X 50 A
Fuses (230V 3~) pcs x ampers	PC70XE: 3 x 20 PC90XE: 3 X 25 A
Supply cable (400V 3N~) mm2	PC70XE: 5 x 1.5 PC90XE: 5 x 2.5
Supply cable (230V 1N~) mm2	PC70XE: 3 x 10
Supply cable (230V 3~) pcs x mm2	PC70XE: 4 x 2,5
Electrical group options	PC70XE: 230V~, 230V 3~, 400V 3N~ PC90XE: 230V 3~, 400V 3N~

Logistic data
EAN	PC70XE: 6417659026086 PC90XE: 6417659026482
Electrical number (STK)	PC70XE: 8266728 PC90XE: 8266729
Customs tariff number EU	85162999
ETIM number	EC001884
UNSPSC number	40101800
Packaging materials	Cardboard
Package height	975 mm
Package width	330 mm
Package depth	330 mm
Gross weight	PC70XE: 10.7 kg PC90XE: 10.9 kg
Plastic weight	0.02 kg
Cardboard weight	PC70XE: 1.35 kg PC90XE: 1.4 kg
